Description

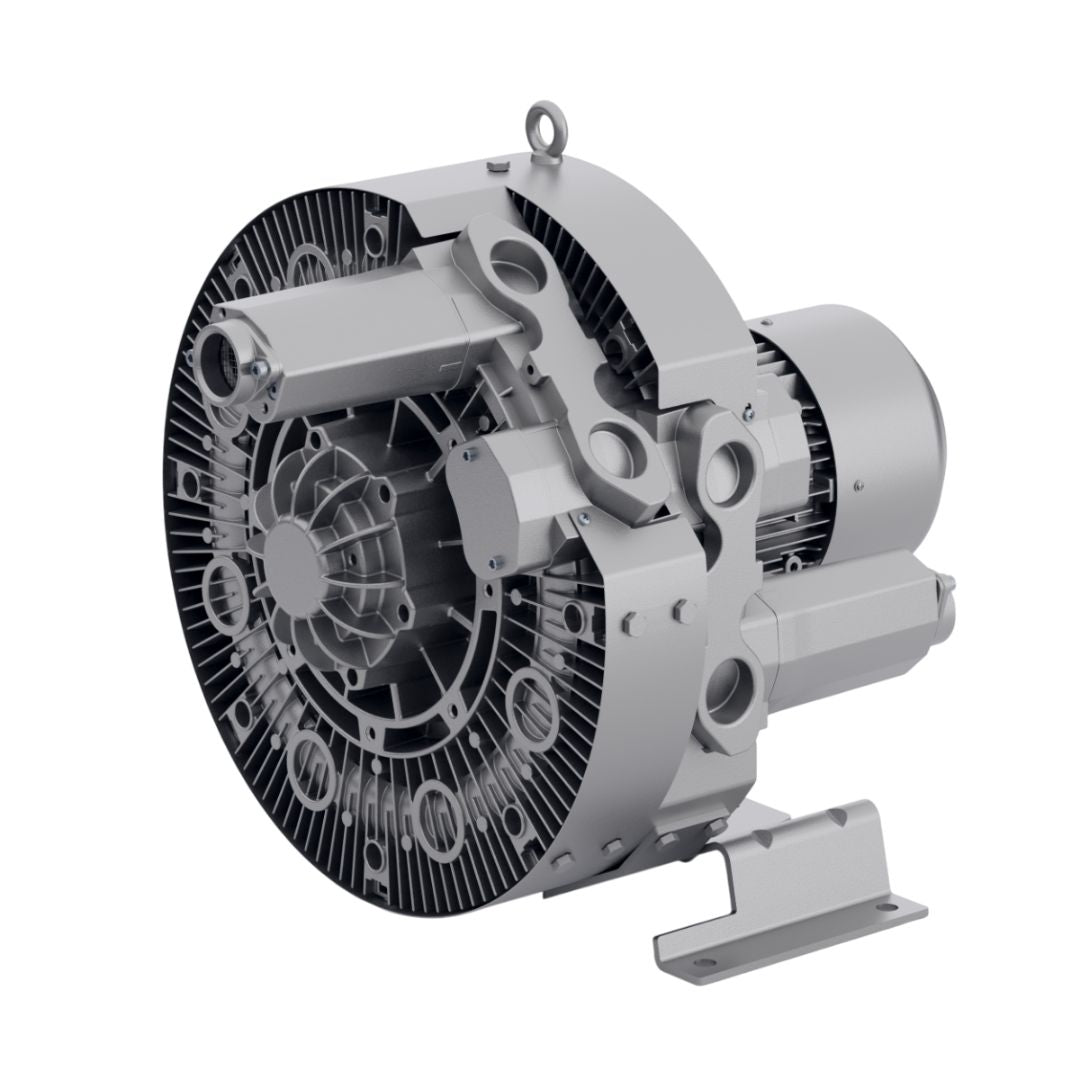

Republic 4RC220-A75 2.3 HP Regenerative Blower, 1 Phase
The Republic 4RC220-A75 is a single phase, high pressure regenerative blower with a maximum air flow of 35 cfm, maximum vacuum of 169 in.H2O, and maximum pressure of 265 in.H2O.
Blower Specifications:
| Specification | 50 Hz | 60 Hz |
|---|---|---|
| Model | 4RC220-A75 | 4RC220-A75 |
| Phase | 1 | 1 |
| Air flow (CFM/m³/hr) | 28/47 | 35/60 |
| Rated Vacuum (in. H&sub2;O/mbar) | 149/370 | 169/420 |
| Rated Pressure (in. H&sub2;O/mbar) | 241/600 | 265/660 |
| Motor (HP/kW) | 2.0/1.5 | 2.3/1.7 |
| Voltage (V) | 230 | 115/230 |
| Current (A) | 9.7 | 20.6/10.3 |
| Sound Level (dB) | 62 | 62 |
| Weight (lb/kg) | 67/34 | 67/34 |
Resources:
Datasheet
