Description

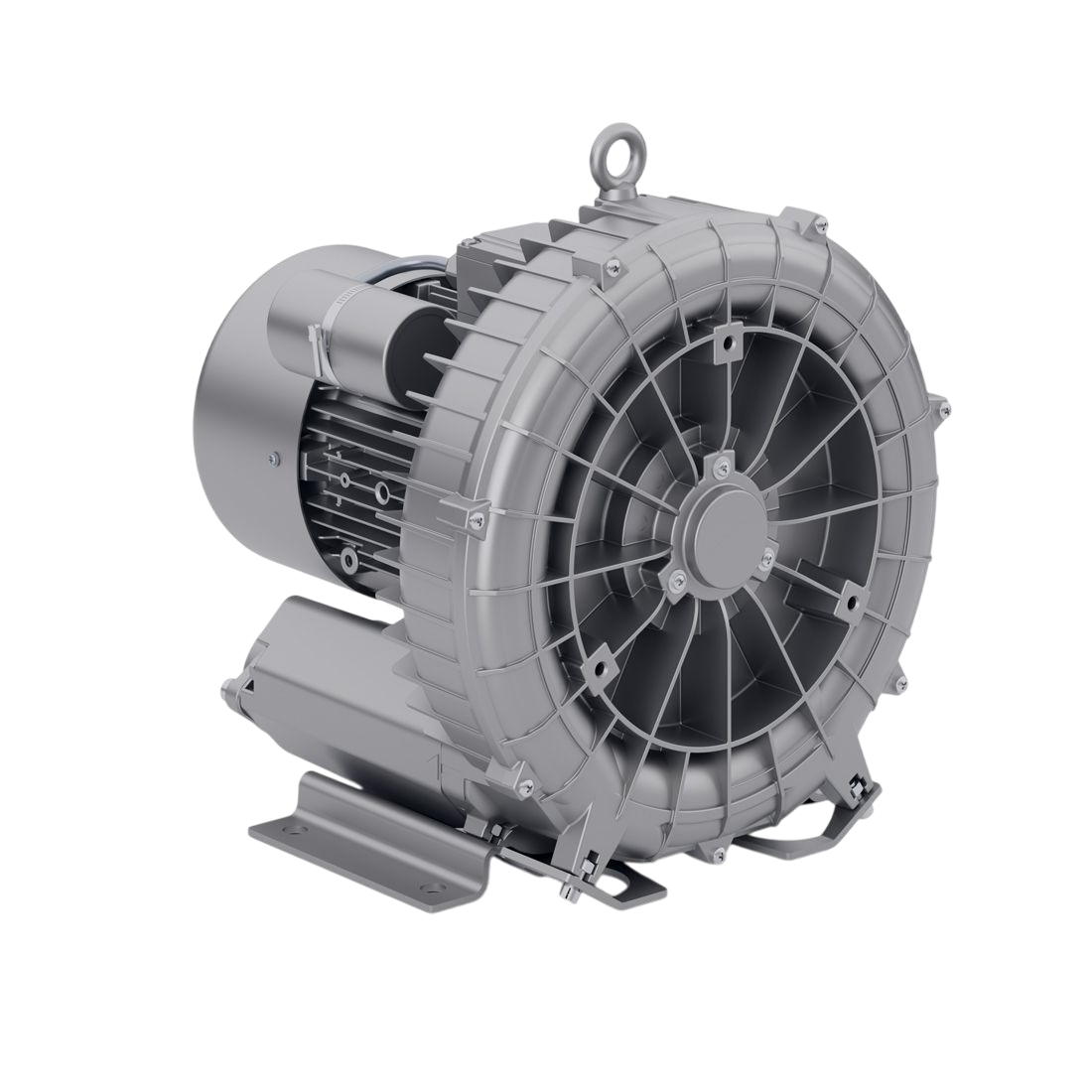

Republic HRC301 2.4 HP Regenerative Blower, 1 Phase
The Republic HRC301 is a single phase, high pressure regenerative blower with a maximum air flow of 150 cfm, maximum vacuum of 63 in.H2O, and maximum pressure of 71 in.H2O.
Blower Specifications:
| Specification | 50 Hz | 60 Hz |
|---|---|---|
| Model | HRC 301 | HRC 301 |
| Phase | 1 | 1 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 124/210 | 150/255 |
| Rated Vacuum (in. H₂O/mbar) | 65/161 | 63/157 |
| Rated Pressure (in. H₂O/mbar) | 65/161 | 71/177 |
| Motor (HP/kW) | 2.0/1.5 | 2.4/1.8 |
| Voltage (V) | 230 | 115/230 |
| Current (A) | 10.4 | 22.4/11.2 |
| Sound Level (dB) | 64 | 70 |
| Weight (lb/kg) | 53/24 | 53/24 |
Resources:
Datasheet
