Description

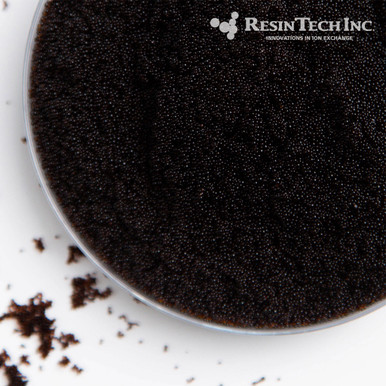

ResinTech CG8 is a dark colored 8% cross linked gel strong acid cation resin. CG8 is a workhorse cation resin optimized for industrial and residential applications that require good regeneration efficiency and oxidative stability. ResinTech CG8-BL is intended for use in all industrial and commercial softening applications as well as residential applications that have moderate amounts of chlorine in the feedwater. CG8-H-BL is intended for use in demineralizes and in mixed beds.
Features & Benefits – Industrial Softening and Demineralizing Applications: 8% DVB cross linking is ideal for most industrial applications – Low Color Thow – Superior Physical Stability: 93% plus sphericity and high crush strengths together with carefully controlled particle distribution provides long life and low pressure drop – Complies With US FDA Regulations: Conforms to paragraph 21CFR173.25 of the Food Additives Regulations of the US FDA
Applications: – Softening: ResinTech CG8-BL is an 8% crosslinked cation resin optimized for residential and commercial applications. – Demineralization: ResinTech CG8-BL can be used as the cation component in a separate bed and mixed bed demineralization applications where a hydrogen form cation resin is coupled with a hydroxide form anion resin. Regeneration is accomplished with stepwise sulfuric acid or with hydrochloric acid. – Iron Removal: CG8-BL has good capacity for ferrous iron. Iron content in the feed water should not be more the 1 mg/L Fe per each 17 mg/L of hardness. – Ammonia Removal: ResinTech CG8-BL is slightly selective for ammonia compared to sodium but hardness is much more preferred. Ammonia is not ionized at pH above 9 and is not well removed when the pH is significantly alkaline
Physical Properties – Polymer Structure: Styrene/DVB – Polymer Type: Gel – Functional Group: Sulfonic Acid – Physical Form: Spherical Beads – Ionic Form as Shipped: Sodium – Column Capacity:>2.0 meq/mL – Water Retention: 42 to 49 percent – Approximate Shipping Weight: 52 lbs per cu. ft. – Screen Size Distribution (US Mesh): 16 to 50 – Maximum Fines Content (<50 mesh): 1% – Minimum Sphericity: 93% – Uniform Coefficient: 1.6 approx. – Resin Color: Brown to Black
Suggested Operating Conditions – Maximum Continuous Temperature: 280°F – Minimum Bed Depth: 24 Inches – Backwash Expansion: 25 to 50 percent – Maximum Pressure Loss: 25 psi – Operating pH Range: 0 to 14 SU – Regenerant Concentration: – Hydrogen Cycle: 5 to 10% HCl – Hydrogen Cycle: 1 to 8% H2SO4 – Salt Cycle: 10 to 15 % NaCl – Regenerant Level: 4 to 15 lbs per cu. ft. – Regenerant Flow Rate: 0.5 to 1.5 gpm per cu. ft. – Regenerant Contact Time:> 20 minutes – Displacement Flow Rate: Same as dilution water – Displacement Volume: 10 to 15 gallons per cu. ft. – Rinse Flow Rate: Same as service flow – Rinse Volume: 35 to 60 Gallons per cubic foot – Service Flow Rate: 1 to 10 gpm per cubic foot
