Description

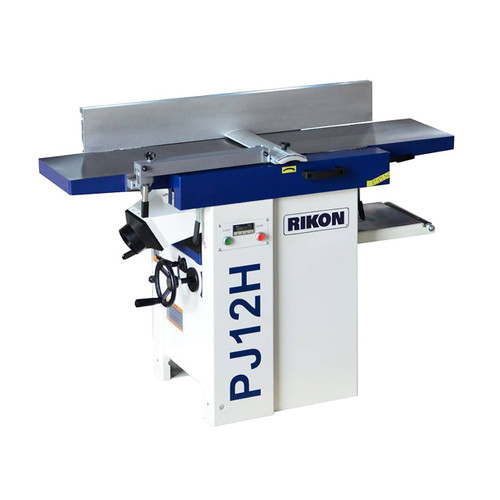

Equipped with a 12″ cutter head and 3HP motor that make quick work in milling the hardest, or widest rough-sawn lumber. The jointer and planer tables are made of heavy cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head.
- Helical Cutter Head with 34 Four-sided Carbide Inserts
- Large 43-1/4″ x 6″ Fence
- Tilts 90° to 135°
- Full Jointer Table Size 12″ x 55-3/4″
- Planer Depth Scale with Digital Readout
Horsepower: 3HP
Amps: 12
Motor: 230V, 60Hz
Speed (No Load): 3,400 RPM
Cutting Capacity – Jointer
Max. Cutting Width: 12″
Max. Depth of Cut: 1/8″
Min. Length of Stock: 10″
Min. Width of Stock: 3/4″
Min. Thickness of Stock: 1/2″
Table Size (2): 12″ x 27″
Overall Table Size: 12″ x 55-3/4″
Cutting Capacity – Planer
Max. Cutting Height/Width: 8″ x 12″
Max. Depth of Cut: 1/8″
Min. Length of Stock: 12″
Overall Table Size: 13-1/8″ x 21-1/2″
Table Size with Extension: 13-1/8″ x 35-1/2″
Cutter head
Speed: 5,500 RPM
Number of Carbide: Inserts (4 sided) 34
Carbide Insert Size: 15 mm x 15 mm x 2.5 mm
Number of Insert Rows: 2
Diameter: 2-1/2″
Cuts per Minute: 16,500
Fence Size: 43-1/4″ x 6″
Tilt: 90° to 135°
Overall size: 55-3/4″L x 31″W x 39-1/2″H
Base Size: 21-1/2″L x 19″W
Dust Port: (OD) 4″
Weight: 509 lbs.
Includes
outfeed planer table
