Description

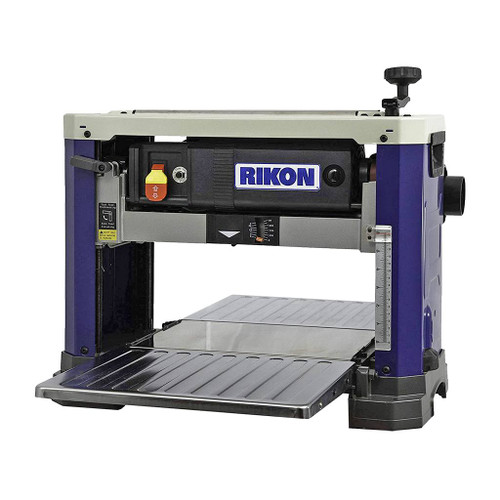

Portable planer features a 6-row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on 2 edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a 2-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning and side carry handles.
- Powerful 15 Amp motor
- Helical style cutterhead
- 2-speed feed rate
- All steel construction
- Easy blade access
- Infeed/outfeed table extensions
- Mfr.’s 5-year warranty
Volts: 115V, 60 Hz
Amps: 15
Maximum Planer Width: 13″
Maximum Depth of Cut: 1/16″ @ 6″ to 13″W, 1/8″ within 6″ wide
Cutterhead Speed: 10,000 RPM
Number of HSS Knives: 26
Cutterhead Diameter: 2″
Feed Speed: 16 & 26 SF/MIN
Dust Port Diameter: 4″ or 2-1/2″
Overall Size: 19-1/4″H x 22″W x 34-1/4″H
Base Size: 22″ x 13-3/8″
Weight: 68 lbs.
Includes dust hood and chute, star T25 screwdriver, dust hood knobs, dust hose adapter 4″ to 2-1/2″, on/off switch safety key lock, hex wrench, handle screw and height adjustment handwheel.
