Description

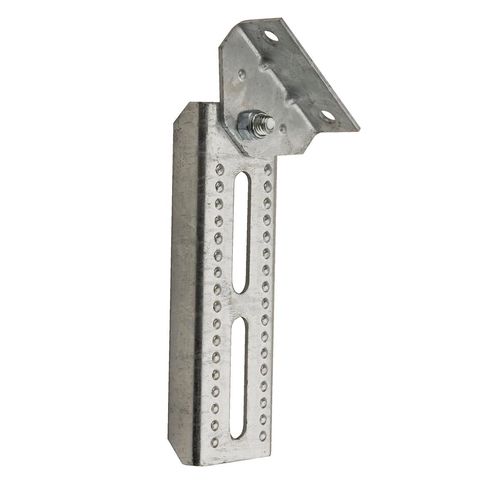

Swivel Bracket Assembly For Bunk Board Support Galvanized
Specifications
- Hot dipped galvanized
- The bolster bracket is 8″ in length, 11 gauge material. and is 2 1/2″ wide. The slots are 1/2″ in width and 2 3/4″ in length.
- The swivel bracket flange is 11 gauge material and is 1 3/8″ x 3 1/2″. Bolt holes are 3/8″ in diameter and are 2 1/2″ on center. The swivel flange is 2″ tall
- Overall Assembly Length 9″
- C.E. Smith Part Number 10000G
