Description

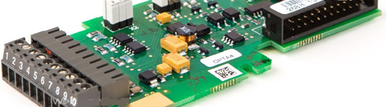

VACON OPT-A4 ( OPT-A4-V ; OPTA4 ; NXOPT4 ) Encoder Board for Vacon NXP & NXS Drives
Differential Inputs A,B,Z (RS-422 Compatible)
Suitable for TTL Encoder
Voltage Output (if required) +5V / +15V (Control voltage selectable with jumper)
Max. input frequency 150kHz
When Used with NXP series Full closed Loop Vector performance can be achieved
When used with NXS series encoder signal can be used as a reference (NXS is not closed loop)
Location: Slot C
1 Terminal Block (Screw -10 way)
P/N: OPT-A4-V or OPTA4 or NXOPTA4
