Description

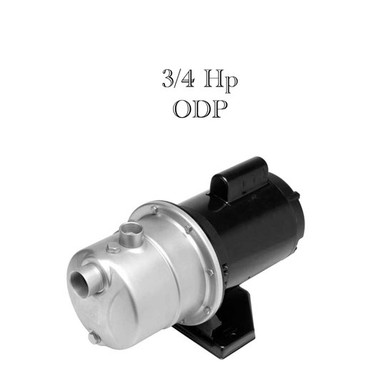

The SPC75Q, is the same model pump as the SPC75, except it includes an upgraded 304SS silicone carbide mechanical seal. This pump is often used in medical and dialysis applications.
The Webtrol Stainless Steel, Self-Priming Centrifugal Pump is the professionals choice when it comes to a self priming centrifugal that has a suction lift of 25′. In many applications it is not possible to install the pump below the water line of the fluid being pumped, to provide a gravity flow into the pump. The Webtrol stainless steel, self priming centrifugal pump is designed to be installed above the water line where a suction lift would be required. These versatile pumps offer a superior alternative to standard cast iron jet or centrifugal pump.
Features/Benefits
• Closed Coupled – For smooth transmission of power
• 304L Stainless steel – Pump case, motor bracket and impeller
• Centerline Discharge – Provide maximum resistance to misalignment
• Non-Overloading Motor – Rated for continuous duty throughout the enitre operating range
• High Operating Efficiencies – Over a wide range of capacities which lower operating costs
• Mechanical Seals – For maximum reliability and economic value
• Back Pullout Design – For ease of servicing the pump without disturbing the piping system
Specifications
| Discharge | 1″ FNPT |
| Suction | 1-1/4″ FNPT |
| Motor | ODP (open, drip proof) |
| HP | 3/4 |
| Phase | 1 Phase |
| Voltage | 115/230 |
| Length | 19.06″ |
| Max Operating Temp | 113° F |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
Pump Curve
| Total Head (Ft) | 130.0 | 110.0 | 93.0 | 78.0 | 68.0 | 60.0 |
| GPM | 2 | 6 | 10 | 14 | 18 | 19 |
Curves are based on 60 Hz. 3450 rpm motors. These curves are for general guidance only, individua pump curves are available upon request.
Construction
| Wetted Materials | 304SS |
| Elastomers | Buna-Nitrile |
| Case | 304SS |
| Shaft | 304SS |
| Bracket | Aluminum |
| Mechanical Seal Face | Silicon Carbide |
| Mechanical Seal Type | Single |
| Warranty | 1 Year |
Applications
• Deionized systems
• Reverse Osmosis systems
• Home drinking water systems
• Distribution Systems
•Misting systems
• Liquid transfer systems
• Circulation systems
• Pre-filter charge system
• Condensation systems
• Cooling tower systems
