Description

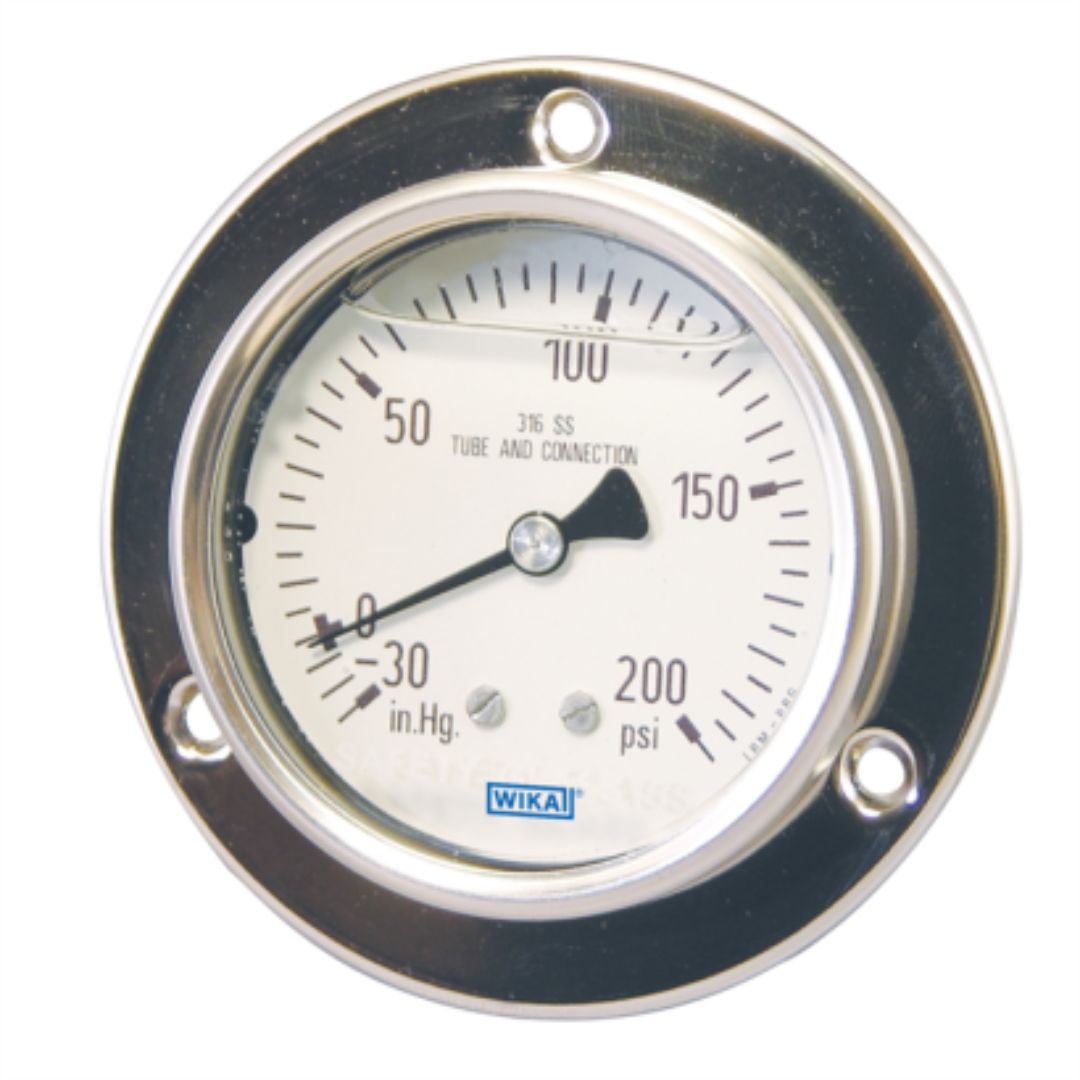

WIKA 233.55 Bourdon Tube Pressure Gauges are designed for panel building and control industry use. 316 Stainless steel construction makes these gauges suitable for corrosive environments, and can be used with gaseous or liquid media.
Features:
- Equipped with socket restrictor and glycerin filled case
- Off-set case liquid filling port
- LBM process connection
- Crimped tamper-proof bezel ring
Specifications:
| WIKA Model Number | 4282896 |
| Size | 2.5″ |
| Connection | 1/4″ NPT – Lower Back Mount |
| Range | 0-30 PSI |
| Accuracy Class | 2½” + ASME B40.100 Grade A 2/1/2% |
| Material (Case/Flange/Socket) | 316 Stainless Steel |
| Material (Dial/Pointer) | Aluminum |
| Material (Window Gasket) | Buna-N |
| Case Filling | Glycerin |
| Working Range | Steady: ¾ of full scale value Fluctuating: 2/3 of full scale value Short time: full scale value |
| Operating Temperature | Ambient: -4°F to 140°F (-20°C to 60°C) Media: 212°F (+100°C) maximum |
| Ingress Protection | IP 65 per EN 60529 / IEC 60259 |
