Description

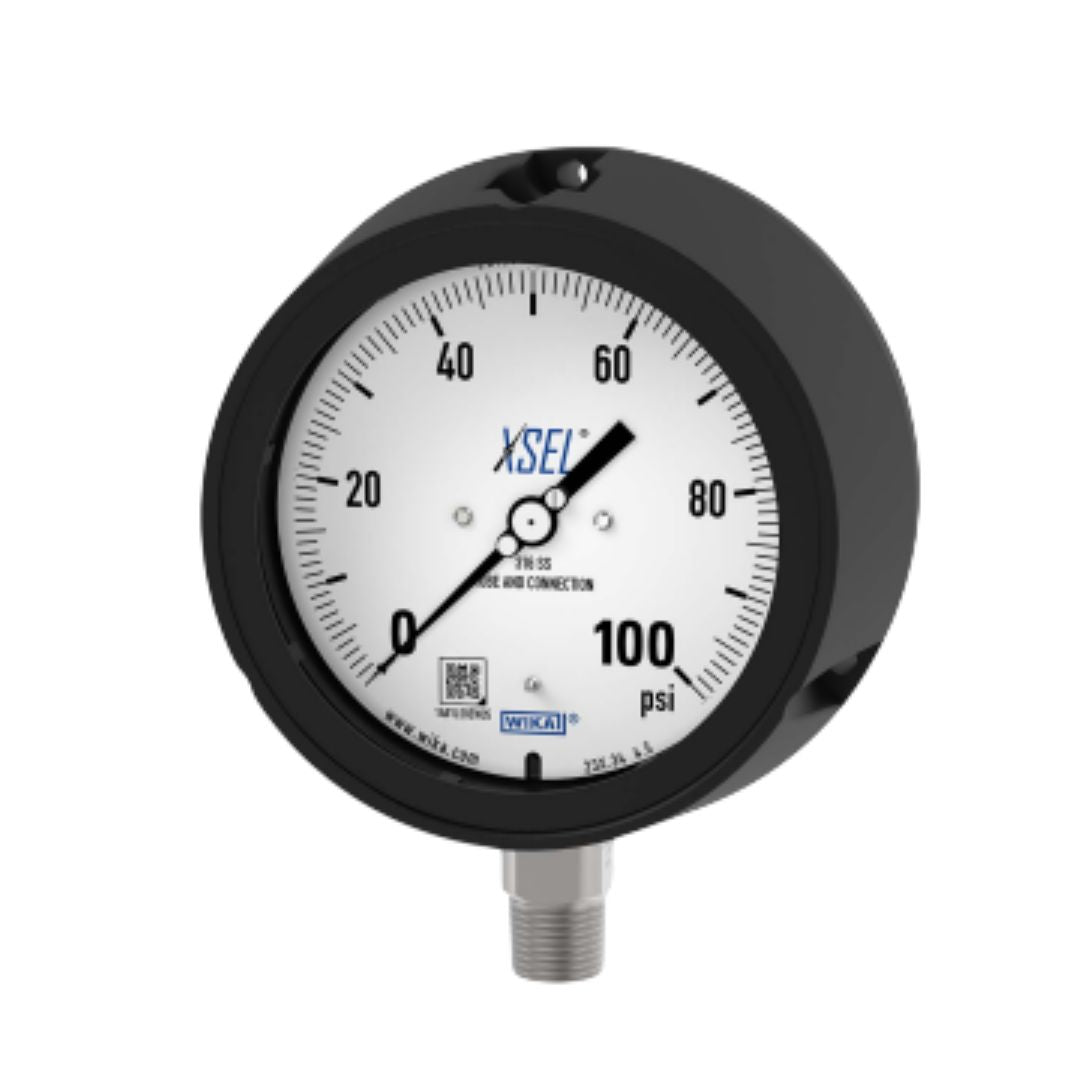

WIKA 232.34 Bourdon Tube Pressure Gauges are designed for applications with highly dynamic pressure loads and vibrations. For use with gaseous and liquid aggressive media that are not highly viscous or crystallizing. Common applications include Plant construction, chemical industry, petrochemical industry, power plants, mining, on-/offshore and environmental technology
Features:
- High-quality materials and the robust design are geared to applications in the chemical and process engineering industries
- Excellent load-cycle stability and shock resistance
- WIKA manufactures and qualifies the pressure gauge in accordance with the standard ASME B40.100
- Glass-fiber reinforced POCAN® case offers the necessary stability for reproducible measurements, even under aggressive ambient conditions
- Surface mounting flange (integrated into case)
Specifications:
| WIKA Model Number | 52931079 |
| Size | 4.5″ |
| Connection | 1/2″ NPT – Bottom Mount |
| Range | 0-10 PSI |
| Accuracy Class | ±0.5 % of measuring span (grade 2A) |
| Material (Case) | PBT thermoplastic, glass-fiber reinforced |
| Material (Tube/Connection) | 316 SS |
| Material (Dial/Pointer) | Aluminum |
| Material (Window Gasket) | NBR |
| Material (Window) | Acrylic (PMMA) |
| Case Filling | Prepared for Filling |
| Operating Temperature | Ambient: -40°F to 140°F (Unfilled) Media: 212°F (+100°C) maximum |
| Ingress Protection | IP 65 per EN 60529 / IEC 60259 |
