Description

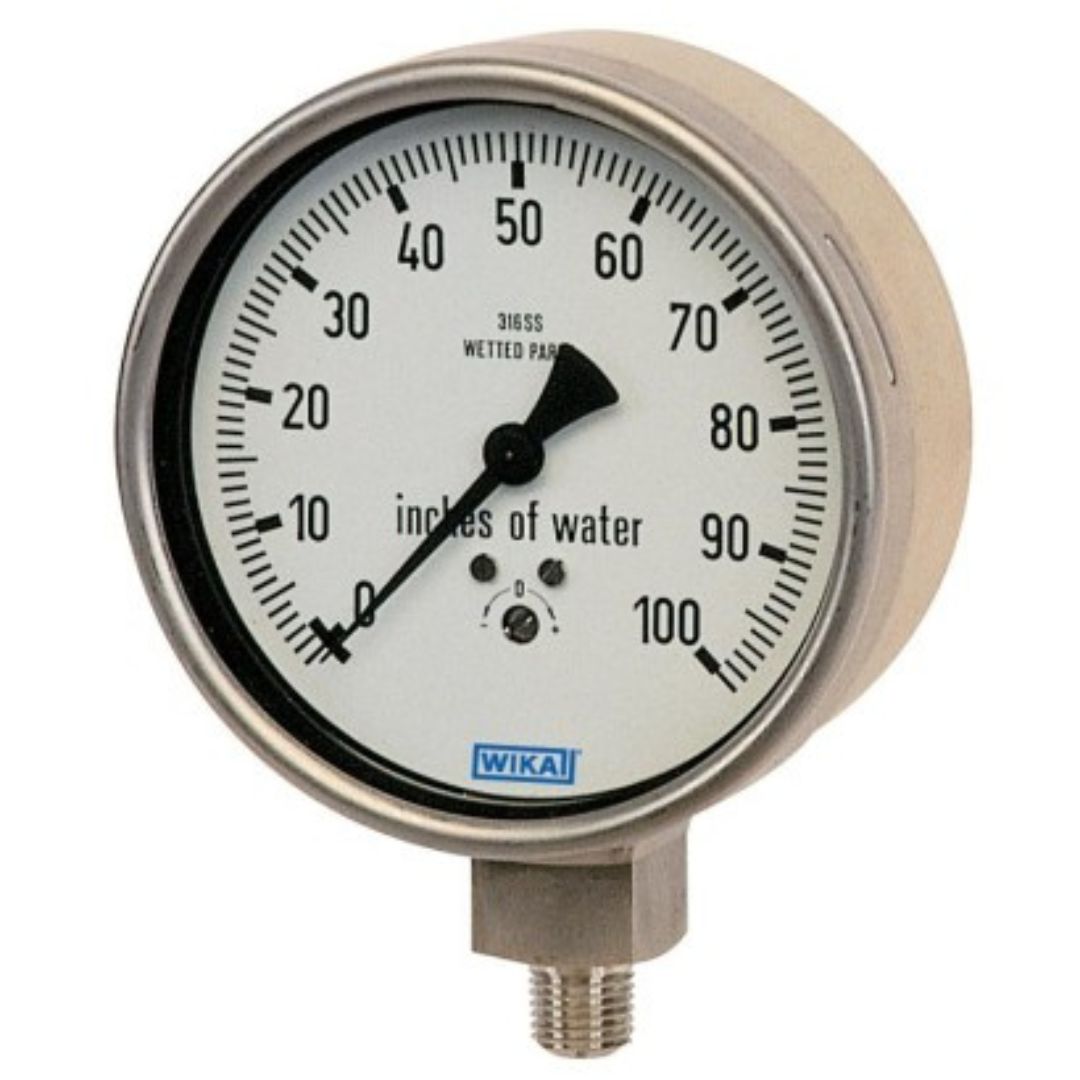

WIKA model 632.50 capsule pressure gauges are constructed entirely of stainless steel and are well suited for use in the process industry and aggressive environments. Common industrial applications include Chemical, petrochemical, pharmaceutical, biotechnology, machine and power generation industries.
Features:
- Zero point correction on front of gauge
- Complete stainless steel construction
- Blowout device on back of case
- QR code on dial links to instrument-specific information
Specifications:
| WIKA Model Number | 56101534 |
| Size | 4″ |
| Range | 0-150 inH2O (0-5 PSI) |
| Process Connection | 1/2″ NPT |
| Material (Case) | 304 / 316 Stainless Steel |
| Material (Window) | Laminated Safety Glass |
| Wetted Materials | 316 SS |
| Material (Seals) | FPM/FKM |
| Permissible Ambient Temperature | -4 – 140°F |
| Ingress Protection | IP54 |
| Accuracy |
EN 837-3 – Class 1.6 ASME B40.100 -±1 % of measuring span (grade 1A) |
