Description

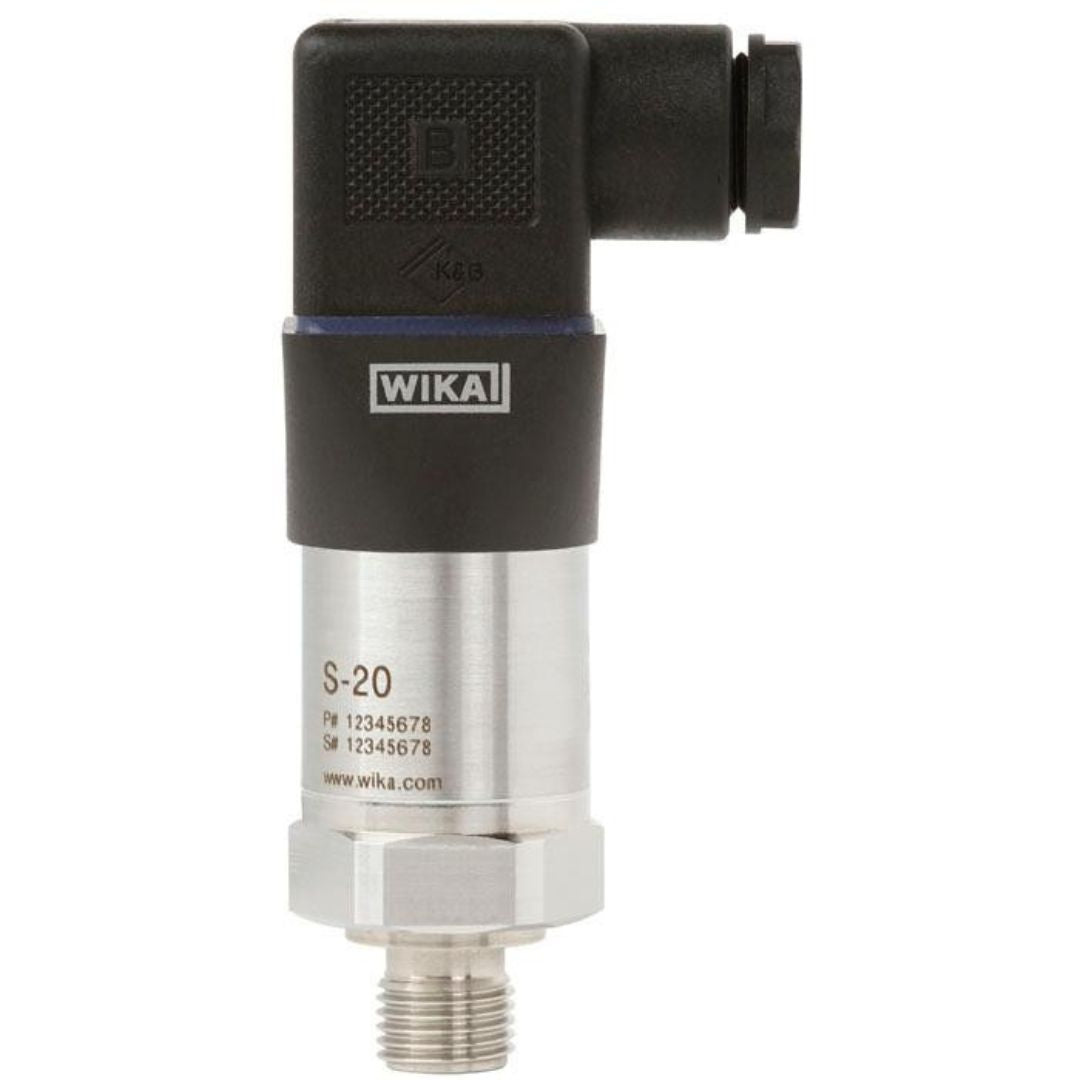

Engineered for demanding measuring requirements, the S-20 Pressure Transmitter combines high accuracy with exceptional durability. Built to withstand adverse environmental conditions—from freezing outdoor temperatures to heavy vibration and aggressive chemical media—this versatile transmitter delivers reliable performance across a wide range of industrial applications including industrial, process and research and development.
Specifications:
| WIKA Model Number | 14093047 |
| Range | 0-15 PSI |
| Output | 4~20 mA |
| Power | 8-36 VDC |
| Non-linearity | 0.25% BFSL |
| Overpressure safety | 3 Times |
| Process Connection | 1/4″ NPT |
| Electrical Connection |
Angular connector DIN 175301-803 A (With Mating Connector) |
| Pin Assignment |
U+=1, U-=2 |
| Permissible Temperature |
-22 – +212 °F |
| Shock/Vibration Resistance |
100 g / 20 g |
| Wetted Materials |
316L Stainless Steel |
| Leakage Rate |
5×10^-3 (mbar*l)/s |
| Approvals |
cULus |
